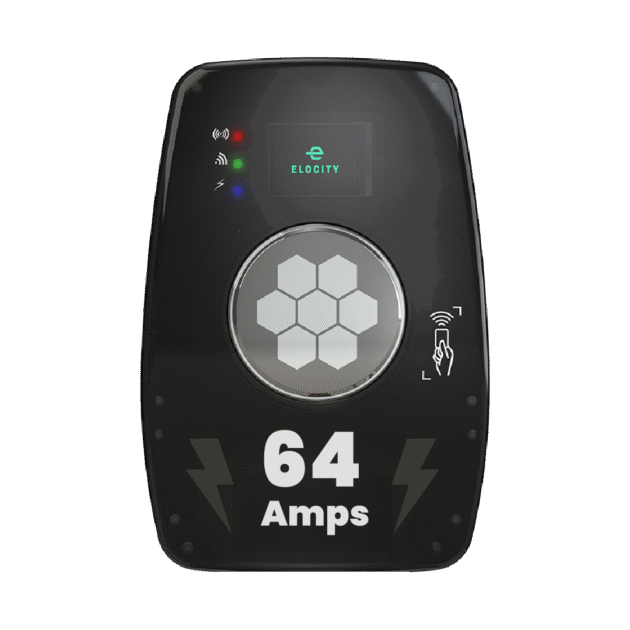

HIEVB – E64 Series

64 Amp Level 2 Smart EV Charger


The Elocity E64 Series is a powerful Level 2 AC smart charger, delivering up to 64A (15.4 kW) for heavy-duty residential, commercial, and public charging needs. Built in a hardwired design for enhanced reliability, it features IP65-rated protection for indoor/outdoor use, OCPP 1.6J compliance, and Class 1.0 embedded metering. Equipped with Wi-Fi, Bluetooth, Ethernet, and optional 4G connectivity, it offers advanced load management, configurable power sharing, and secure data storage in Canada. With safety systems including ground fault, surge, and overload protection, plus OTA firmware updates, the E64 delivers high-capacity charging with maximum uptime and scalability.

ET100 E64 – File Download Here

Category: Product ID: 25105

Description

Description

High-capacity 64A (15.4 kW) Level 2 charging.
Hardwired with IP65 protection and OCPP 1.6J compliance.
Advanced load management and secure data storage.

Featureย
Descriptionย
Power, Current, and Voltage Ratingย  Adjustable up to 9.6 KW (Manual selection switch to configure to 8 Amps/16 Amps/24 Amps/32 Amps /40 Amps /48 Amps /64 Amps, 208 V/240 V (Split Phase) AC (+/- 20%).ย
IP Ratingย  IP65 (Outdoor and Indoor rated).ย
Required Service Panelย  Dedicated Dual Pole rated for 125% of maximum loadย
Breakerย  (ex: 80A breaker for 64A output)ย
Electrical and Safety Protectionsย  Inbuilt ground fault, surge, and overload protections.ย
Protocols and Communications Standardsย  OCPP 1.6 J.ย
Load & Power Managementย  Open and interoperable demand management, load management, power sharing and power management.ย
Power Sharingย  Software configurable remote switching and power sharing from 0% to 100%.ย
Communication Channelsย  Multiple options such as Wi-Fi, cellular, Bluetooth, and Ethernet.ย
Meteringย  Embedded Class 1.0 electricity meter, other metering options such as ANSI and Measurement Canada certified meters are available*.ย
Real-time power, voltage, and current.ย
Time series data for real-time, daily, weekly, and monthly billing and monitoring.ย
Data Retention and Storageย  90 days historical local storage on a rolling basis to prevent loss of data, peer to peer communication, data is strictly stored in Canada.ย
System Updatesย  Over the air.ย
Charging Cable Typeย  SAEJ1772 plug type 1 with 5/7 meters cable.ย
Displayย  TFT LCD, Size: 36.72 (Height) x 48.96 (Width) mm, Resolution: 320 (Height) x 240 (Width) RGBย
