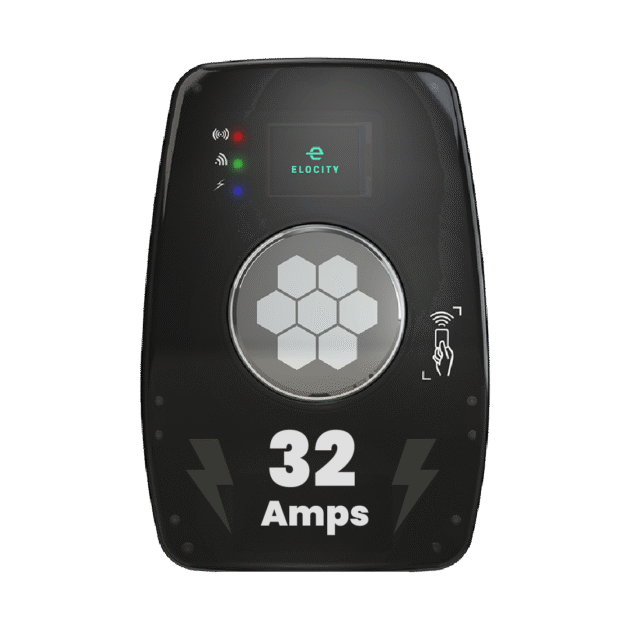

Fast, reliable, and future-ready EV charging up to 32A (7.4 kW). OCPP-compliant, IP65-rated, and built for homes, workplaces, fleets, and public sites with intelligent load management, secure billing, and multiple connectivity options.ย ย
Featureย |
Descriptionย |
Power, Current, and Voltage Ratingย |
Adjustable up to 7.4 KW (Manual selection switch to configure to 8 Amps/16 Amps/24 Amps/32 Amps, 208 V/240 V (Split Phase) AC (+/- 20%).ย |
IP Ratingย |
IP65 (Outdoor and Indoor rated).ย |
Required Service Panelย |
Dedicated Dual Pole rated for 125% of maximum loadย |
Breakerย |
(ex: 40A breaker for 32A output)ย |
Electrical and Safety Protectionsย |
Inbuilt ground fault, surge, and overload protections.ย |
Protocols and Communications Standardsย |
OCPP 1.6 J.ย |
Load & Power Managementย |
Open and interoperable demand management, load management, power sharing and power management.ย |
Power Sharingย |
Software configurable remote switching and power sharing from 0% to 100%.ย |
Communication Channelsย |
Multiple options such as Wi-Fi, cellular, Bluetooth, and Ethernet.ย |
Meteringย |
Embedded Class 1.0 electricity meter, other metering options such as ANSI and Measurement Canada certified meters are available*.ย |
Real-time power, voltage, and current.ย |
|
Time series data for real-time, daily, weekly, and monthly billing and monitoring.ย |
|
Data Retention and Storageย |
90 days historical local storage on a rolling basis to prevent loss of data, peer to peer communication, data is strictly stored in Canada.ย |
System Updatesย |
Over the air.ย |
Charging Cable Typeย |
SAEJ1772 plug type 1 with 5/7 meters cable.ย |
Displayย |
TFT LCD, Size: 36.72 (Height) x 48.96 (Width) mm, Resolution: 320 (Height) x 240 (Width) RGBย |
