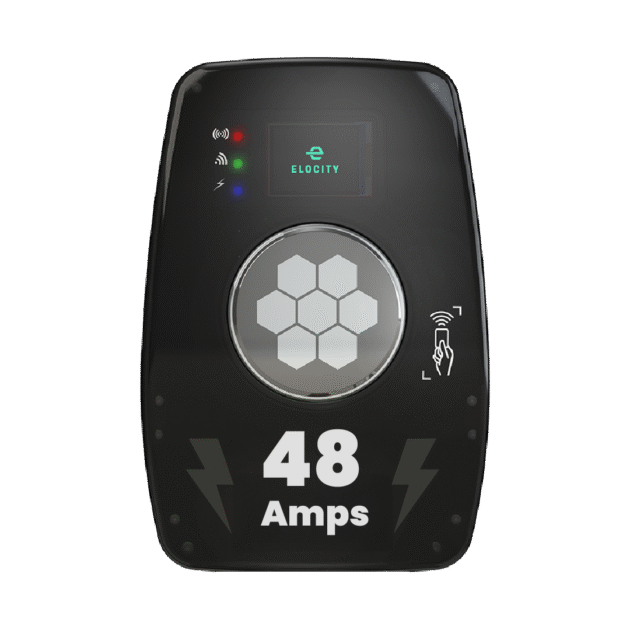

HIEV – E48 Series

48 Amp Level 2 Smart EV Charger


The Elocity E48 Series is a high-performance Level 2 AC smart EV charger, delivering up to 48A (11.6 kW) for fast, reliable charging in residential, commercial, and public environments. Available in wall or pedestal mounts with both plug-in and hardwired options, it features OCPP 1.6J compliance, Class 1.0 embedded metering, and multiple connectivity modes including Wi-Fi, Bluetooth, Ethernet, and optional 4G. Designed for IP65-rated durability, the E48 offers intelligent load management, configurable power sharing, and over-the-air updates, along with robust safety features like ground fault, surge, and overload protectionโ€”ensuring secure, scalable, and future-ready EV charging.

ET100 E48 – File Download Here

Category: Product ID: 25104

Description

Description

Delivers up to 48A (11.6 kW) with wall or pedestal mounting.
OCPP 1.6J compliant with intelligent load and power management.
Durable IP65-rated design for secure, flexible EV charging.

Featureย
Descriptionย
Power, Current, and Voltage Ratingย  Adjustable up to 9.6 KW (Manual selection switch to configure to 8 Amps/16 Amps/24 Amps/32 Amps /40 Amps /48 Amps, 208 V/240 V (Split Phase) AC (+/- 20%).ย
IP Ratingย  IP65 (Outdoor and Indoor rated).ย
Required Service Panelย  Dedicated Dual Pole rated for 125% of maximum loadย
Breakerย  (ex: 60A breaker for 48A output)ย
Electrical and Safety Protectionsย  Inbuilt ground fault, surge, and overload protections.ย
Protocols and Communications Standardsย  OCPP 1.6 J.ย
Load & Power Managementย  Open and interoperable demand management, load management, power sharing and power management.ย
Power Sharingย  Software configurable remote switching and power sharing from 0% to 100%.ย
Communication Channelsย  Multiple options such as Wi-Fi, cellular, Bluetooth, and Ethernet.ย
Meteringย  Embedded Class 1.0 electricity meter, other metering options such as ANSI and Measurement Canada certified meters are available*.ย
Real-time power, voltage, and current.ย
Time series data for real-time, daily, weekly, and monthly billing and monitoring.ย
Data Retention and Storageย  90 days historical local storage on a rolling basis to prevent loss of data, peer to peer communication, data is strictly stored in Canada.ย
System Updatesย  Over the air.ย
Charging Cable Typeย  SAEJ1772 plug type 1 with 5/7 meters cable.ย
Displayย  TFT LCD, Size: 36.72 (Height) x 48.96 (Width) mm, Resolution: 320 (Height) x 240 (Width) RGBย
