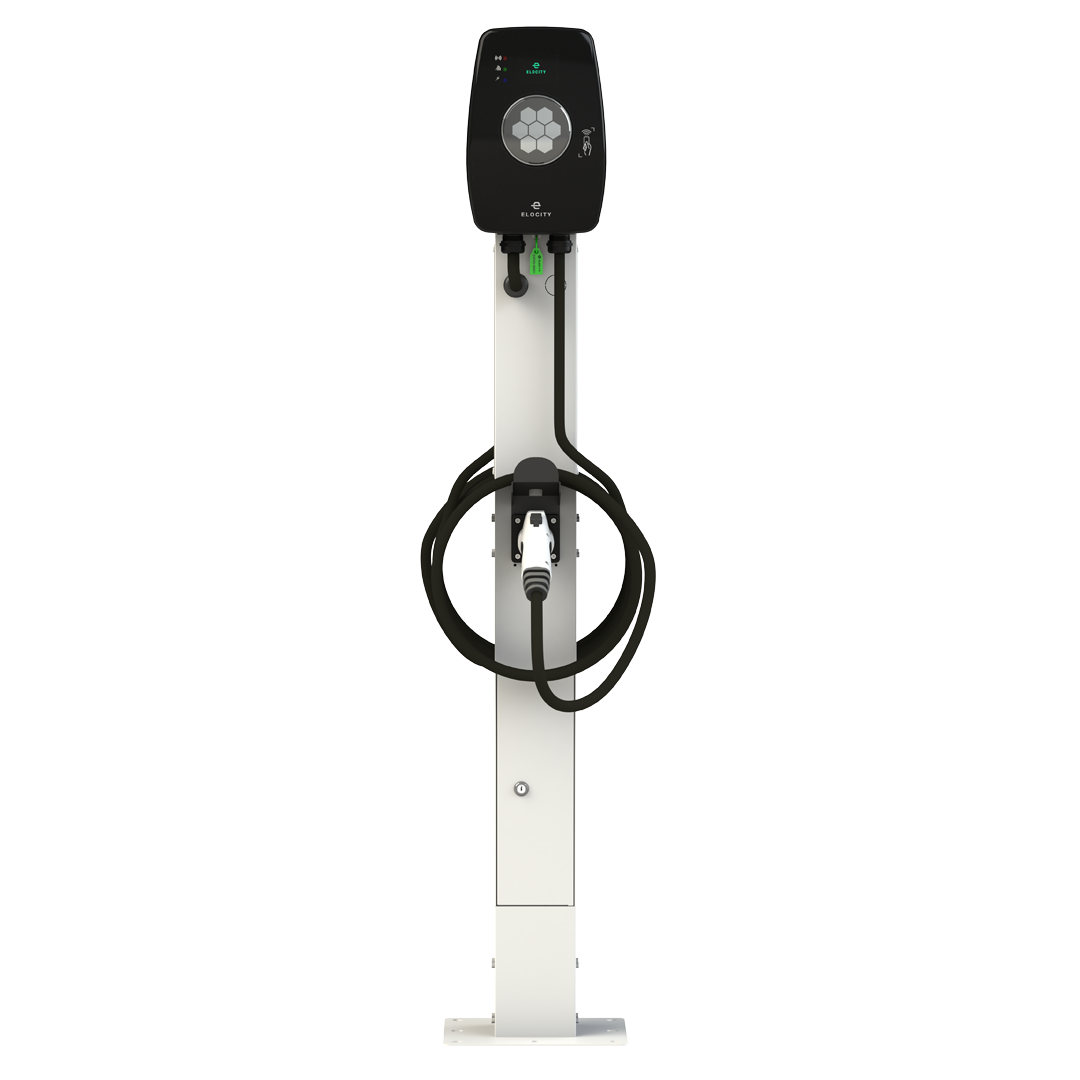

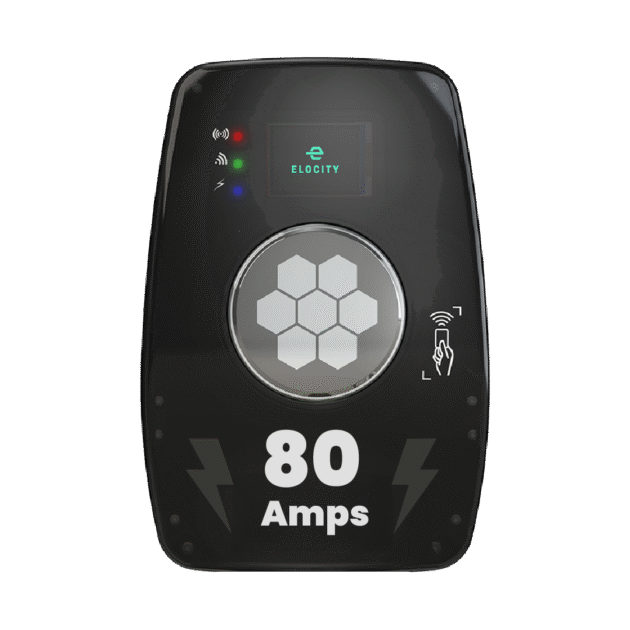

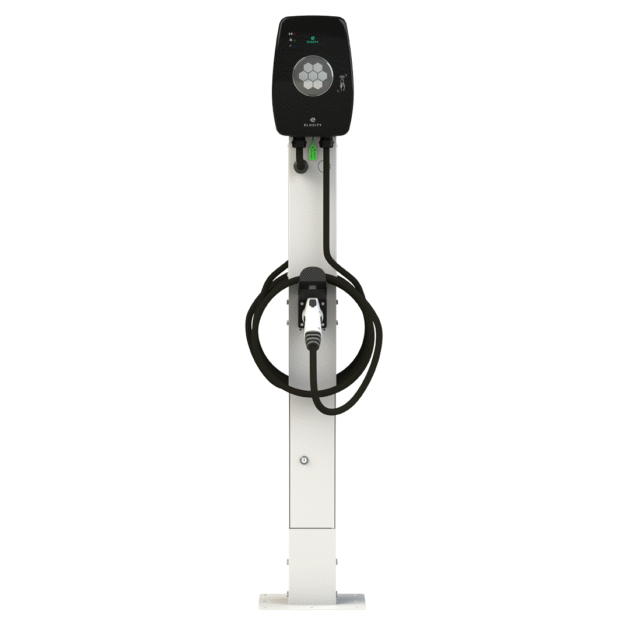

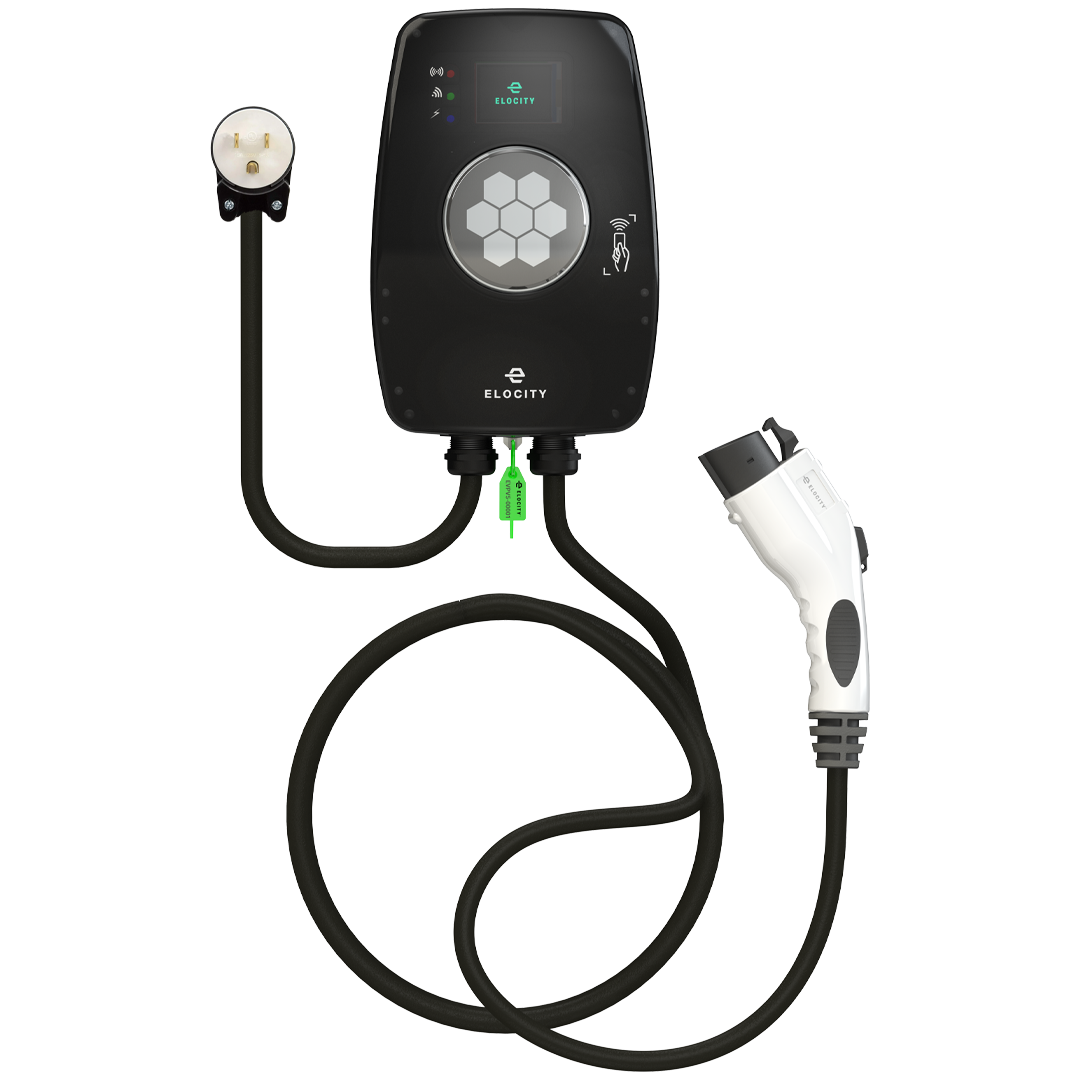

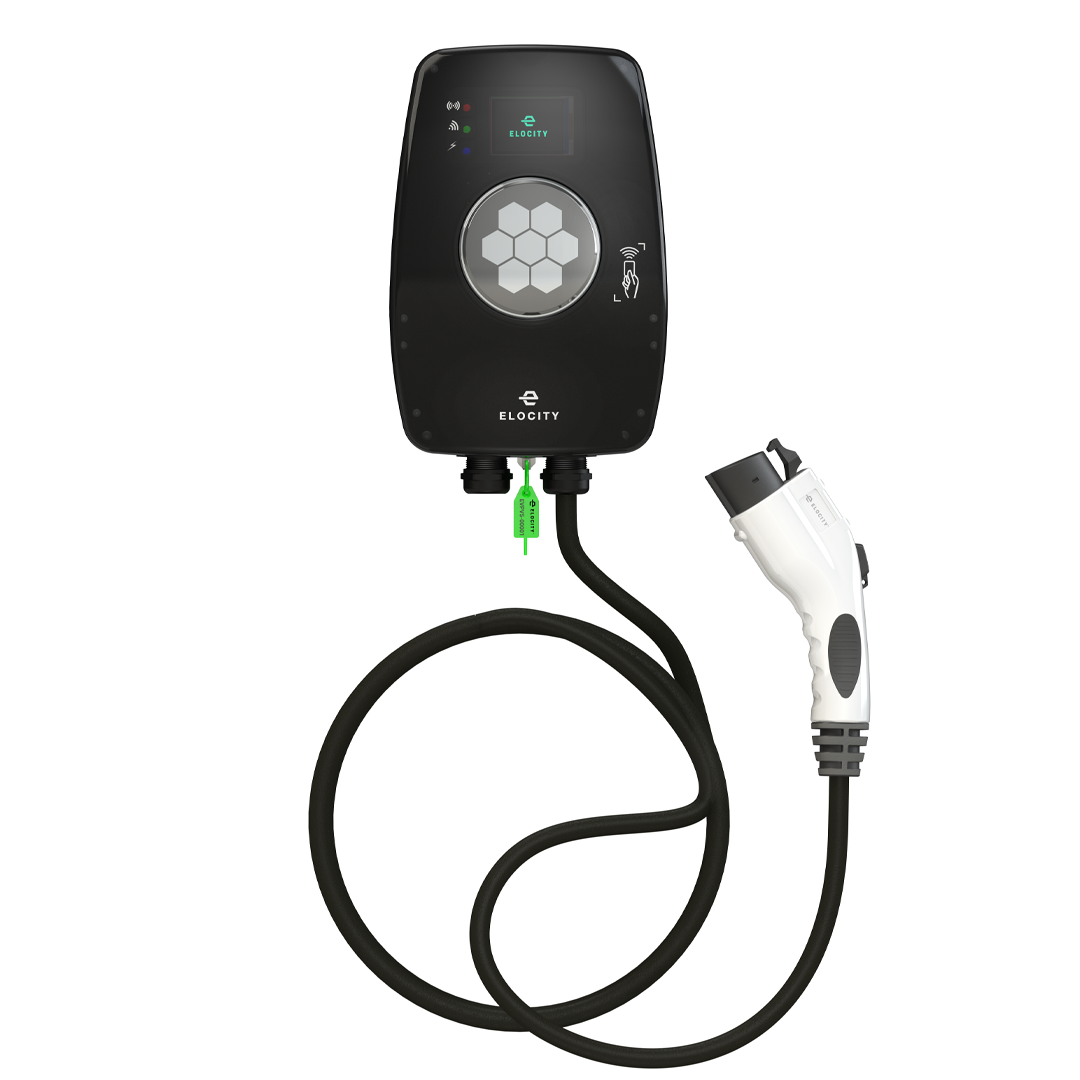

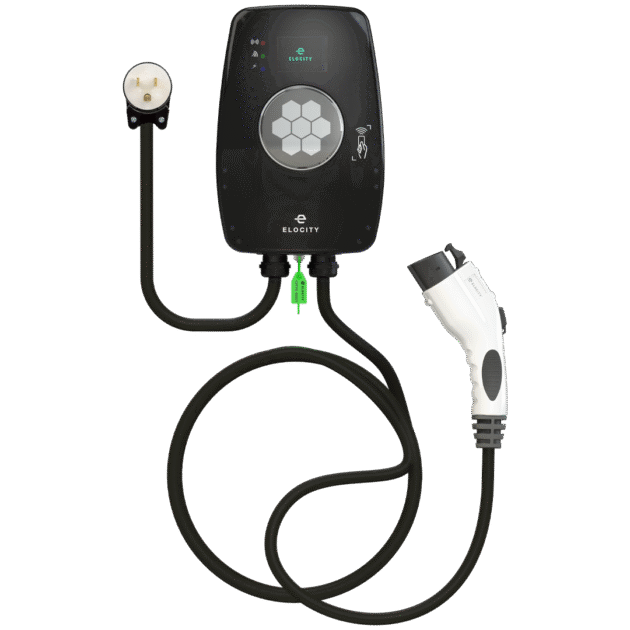

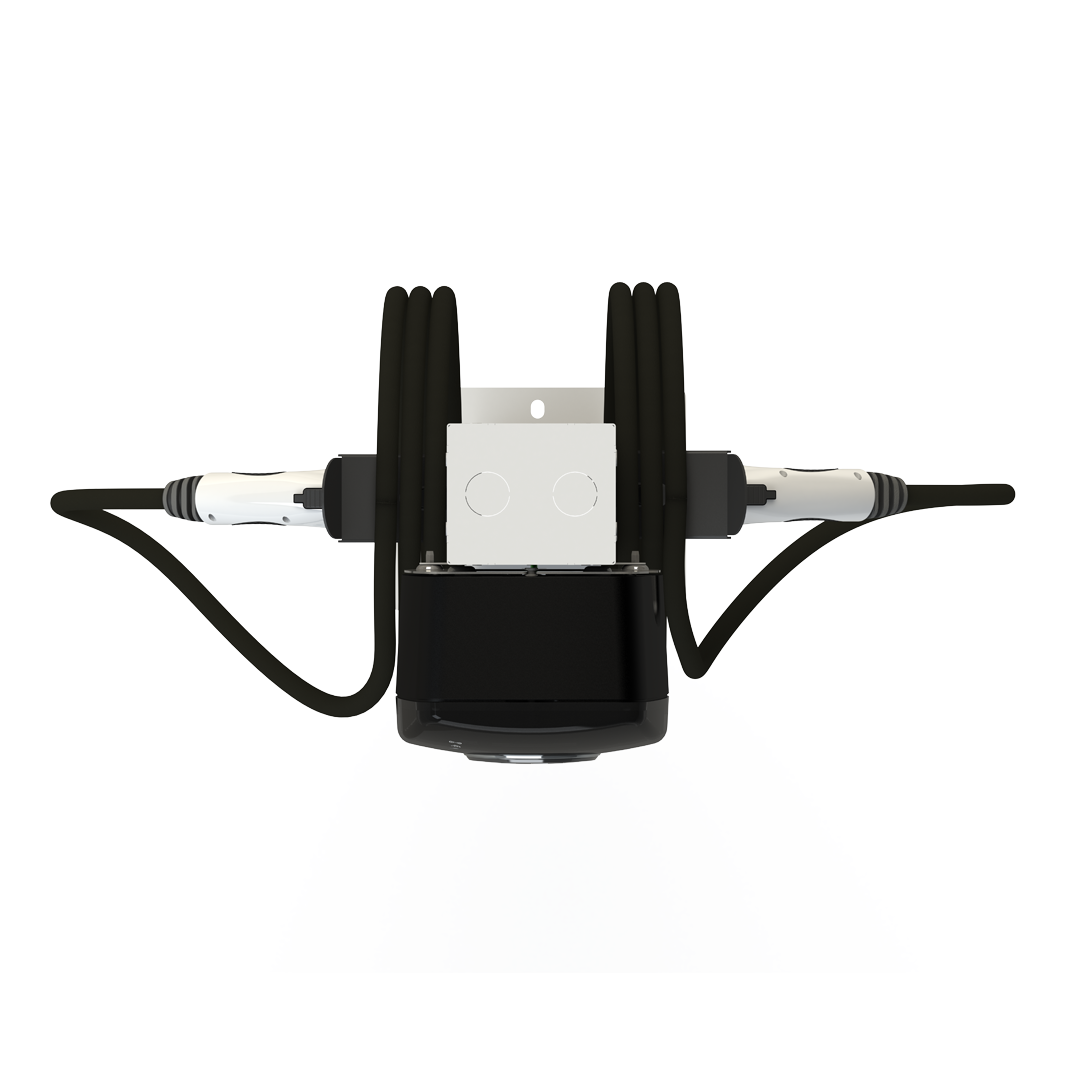

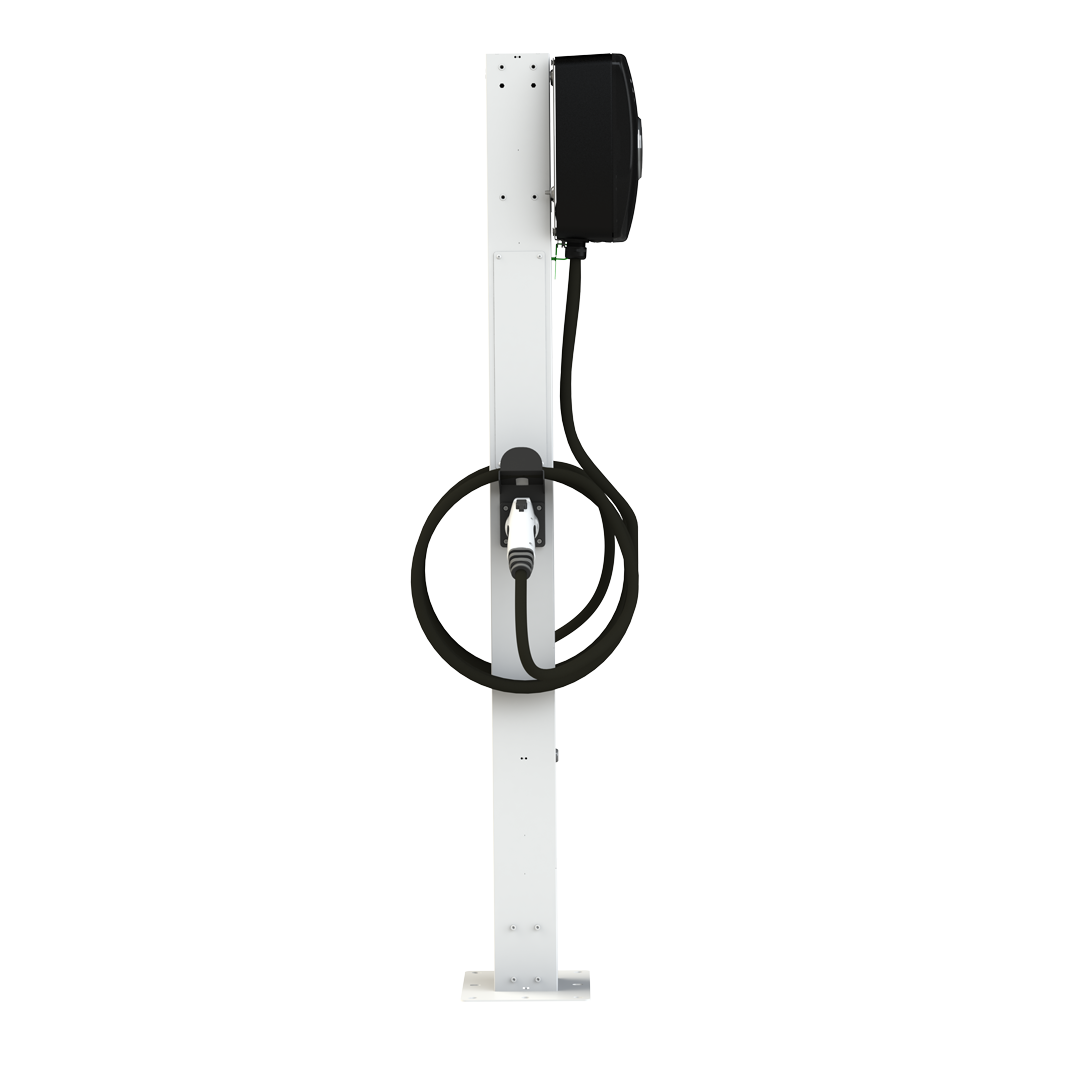

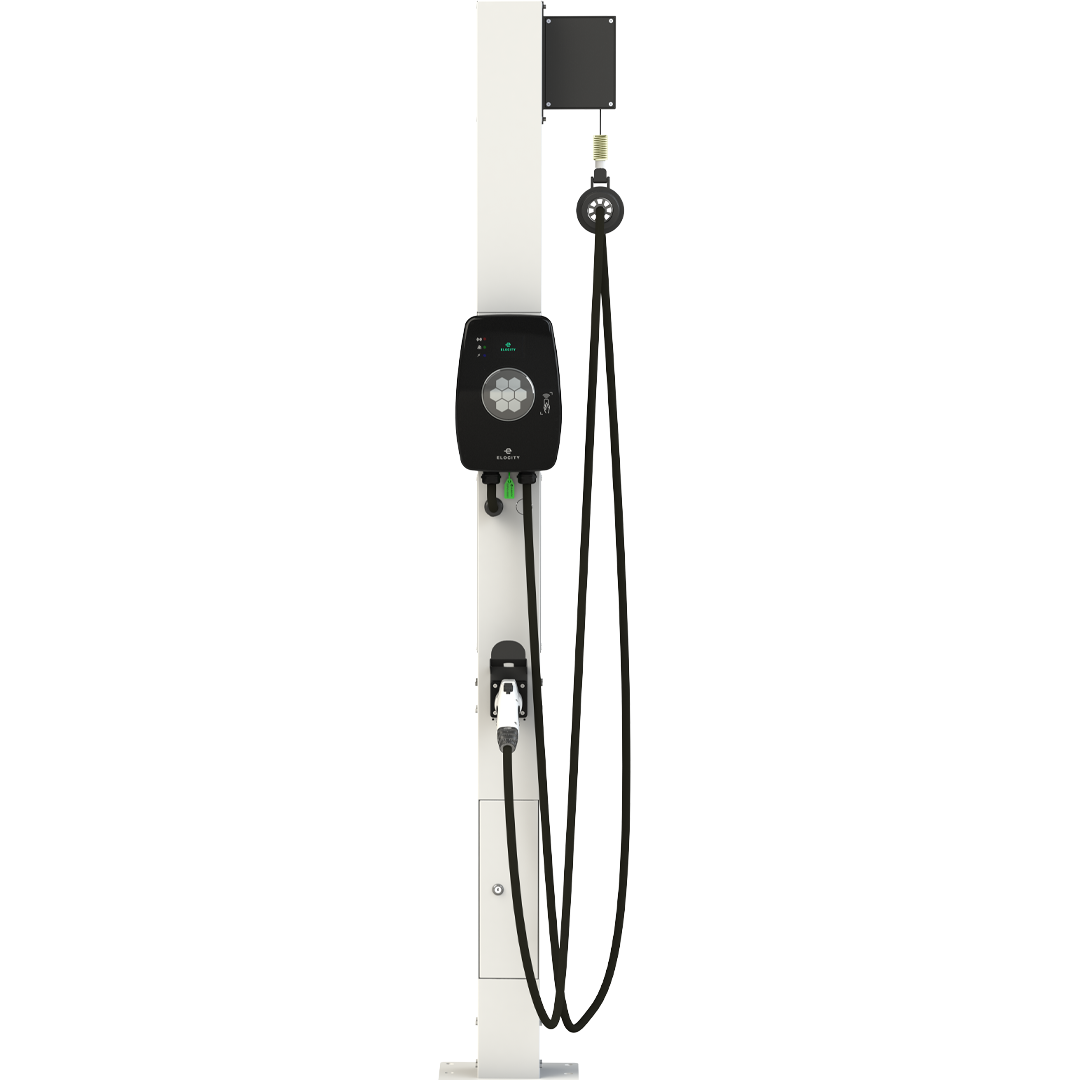

HIEVB – E80 Series

80 Amp Level 2 Smart EV Charger


The Elocity E80 Series is a top-tier Level 2 AC smart charger, delivering up to 80A (19.2 kW) for ultra-fast EV charging in commercial, fleet, and high-demand residential settings. Built for maximum durability with a hardwired, IP65-rated enclosure, it integrates OCPP 1.6J compliance, Class 1.0 embedded metering, and multi-channel connectivity via Wi-Fi, Bluetooth, Ethernet, and optional 4G. Featuring intelligent load and power management, OTA firmware updates, and robust safety systemsโ€”including ground fault, surge, and overload protectionโ€”the E80 ensures unmatched charging speed, reliability, and scalability for the most demanding applications.

ET100 E80 – File Download Here

Category: Product ID: 25106

Description

Description

Ultra-fast 80A (19.2 kW) charging capacity.
Hardwired, IP65-rated with full smart features.
Ideal for fleets, commercial, and high-demand sites.

Featureย
Descriptionย
Power, Current, and Voltage Ratingย  Adjustable up to 9.6 KW (Manual selection switch to configure to 8 Amps/16 Amps/24 Amps/32 Amps /40 Amps /48 Amps /64 Amps /64 Amps, 208 V/240 V (Split Phase) AC (+/- 20%).ย
IP Ratingย  IP65 (Outdoor and Indoor rated).ย
Required Service Panelย  Dedicated Dual Pole rated for 125% of maximum loadย
Breakerย  (ex: 100A breaker for 80A output)ย
Electrical and Safety Protectionsย  Inbuilt ground fault, surge, and overload protections.ย
Protocols and Communications Standardsย  OCPP 1.6 J.ย
Load & Power Managementย  Open and interoperable demand management, load management, power sharing and power management.ย
Power Sharingย  Software configurable remote switching and power sharing from 0% to 100%.ย
Communication Channelsย  Multiple options such as Wi-Fi, cellular, Bluetooth, and Ethernet.ย
Meteringย  Embedded Class 1.0 electricity meter, other metering options such as ANSI and Measurement Canada certified meters are available*.ย
Real-time power, voltage, and current.ย
Time series data for real-time, daily, weekly, and monthly billing and monitoring.ย
Data Retention and Storageย  90 days historical local storage on a rolling basis to prevent loss of data, peer to peer communication, data is strictly stored in Canada.ย
System Updatesย  Over the air.ย
Charging Cable Typeย  SAEJ1772 plug type 1 with 5/7 meters cable.ย
Displayย  TFT LCD, Size: 36.72 (Height) x 48.96 (Width) mm, Resolution: 320 (Height) x 240 (Width) RGBย
