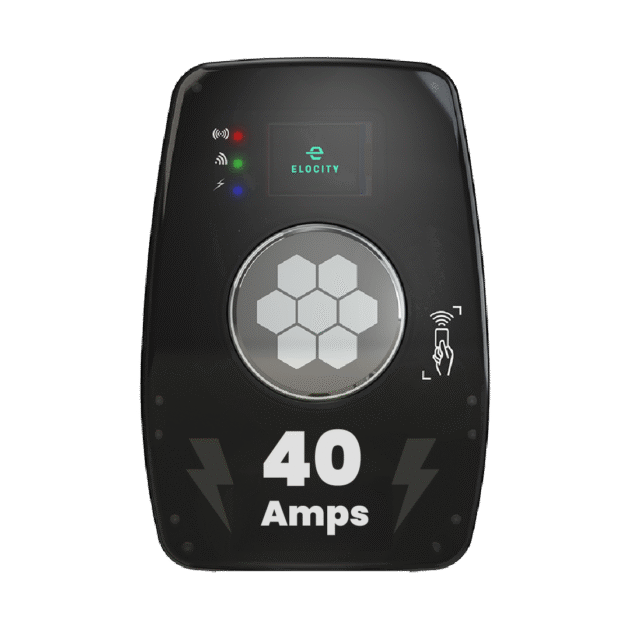

HIEVB – E40 Series

40 Amp Level 2 Smart EV Charger


The Elocity E40 Series is a powerful Level 2 AC smart EV charger, delivering up to 40A (9.6 kW) for fast, reliable, and flexible charging in residential, commercial, and public settings. Available in wall or pedestal mount configurations, it offers both plug-in and hardwired models, with IP65-rated weather protection for indoor and outdoor use. Built with OCPP 1.6J compliance, Class 1.0 embedded metering, and multiple connectivity options including Wi-Fi, Bluetooth, Ethernet, and optional 4G, the E40 ensures interoperability, intelligent load management, and secure billing. Its advanced safety featuresโ€”ground fault, surge, and overload protectionโ€”combine with over-the-air updates, RFID/mobile authentication, and configurable power sharing to deliver a future-ready charging solution that is secure, scalable, and user-friendly.

ET100 E40 – File Download Here

Category: Product ID: 25103

Description

Description

The Elocity E40 Series is a 40A (9.6 kW) Level 2 AC smart charger designed for durability, flexibility, and scalability.
It features OCPP 1.6J compliance, advanced load management, and multiple connectivity options.
Ideal for homes, businesses, and public charging, it offers secure, efficient, and future-proof EV charging. ย

Featureย
Descriptionย
Power, Current, and Voltage Ratingย  Adjustable up to 9.6 KW (Manual selection switch to configure to 8 Amps/16 Amps/24 Amps/32 Amps /40 Amps, 208 V/240 V (Split Phase) AC (+/- 20%).ย
IP Ratingย  IP65 (Outdoor and Indoor rated).ย
Required Service Panelย  Dedicated Dual Pole rated for 125% of maximum loadย
Breakerย  (ex: 50A breaker for 40A output)ย
Electrical and Safety Protectionsย  Inbuilt ground fault, surge, and overload protections.ย
Protocols and Communications Standardsย  OCPP 1.6 J.ย
Load & Power Managementย  Open and interoperable demand management, load management, power sharing and power management.ย
Power Sharingย  Software configurable remote switching and power sharing from 0% to 100%.ย
Communication Channelsย  Multiple options such as Wi-Fi, cellular, Bluetooth, and Ethernet.ย
Meteringย  Embedded Class 1.0 electricity meter, other metering options such as ANSI and Measurement Canada certified meters are available*.ย
Real-time power, voltage, and current.ย
Time series data for real-time, daily, weekly, and monthly billing and monitoring.ย
Data Retention and Storageย  90 days historical local storage on a rolling basis to prevent loss of data, peer to peer communication, data is strictly stored in Canada.ย
System Updatesย  Over the air.ย
Charging Cable Typeย  SAEJ1772 plug type 1 with 5/7 meters cable.ย
Displayย  TFT LCD, Size: 36.72 (Height) x 48.96 (Width) mm, Resolution: 320 (Height) x 240 (Width) RGBย
