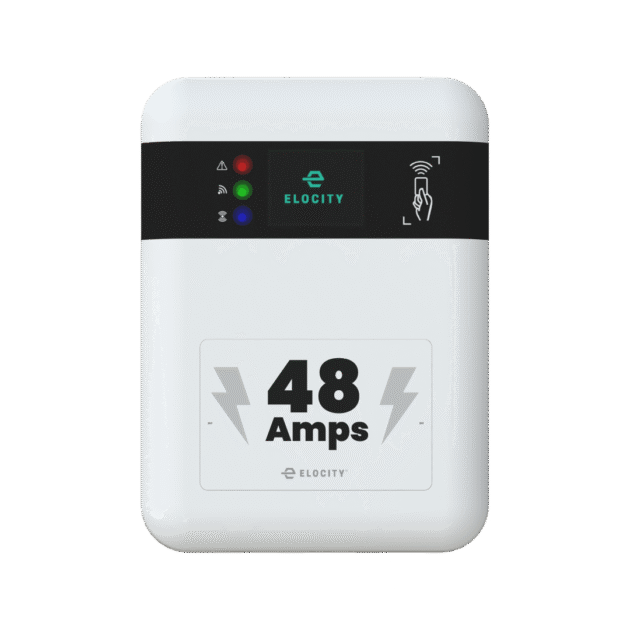

HIEVW – E48 Series

48 Amp Level 2 Smart EV Charger

The Elocity E48 Series is a high-performance Level 2 AC smart EV charger delivering up to 48A (11.6 kW) for fast and efficient charging across residential, commercial, and public environments. Designed for wall or pedestal mounting, it is available in plug-in or hardwired configurations with IP65-rated weather resistance for both indoor and outdoor installations. Built on OCPP 1.6J compliance with Class 1.0 embedded metering, the E48 offers advanced load management, remote power sharing, and flexible connectivity options including Wi-Fi, Bluetooth, Ethernet, and optional 4G. Safety is prioritized with integrated ground fault, surge, and overload protections, while over-the-air updates, RFID/mobile authentication, and robust data security make it a scalable, future-proof charging solution.

ET200 E48 – File Download Here

Category: Product ID: 25143

Description

Description

The Elocity E48 Series is an 11.6 kW Level 2 AC charger built for speed, reliability, and flexibility.
It supports OCPP 1.6J, advanced load management, and multiple connectivity options.
Perfect for homes, businesses, and public charging networks.

Featureย
Descriptionย
Power, Current, and Voltage Ratingย  Adjustable up to 11.6 KW (Manual selection switch to configure to 8 Amps/16 Amps/24 Amps/32 Amps /40 Amps /48 Amps, 208 V/240 V (Split Phase) AC (+/- 20%).ย
IP Ratingย  IP65 (Outdoor and Indoor rated).ย
Required Service Panelย  Dedicated Dual Pole rated for 125% of maximum loadย
Breakerย  (ex: 60A breaker for 48A output)ย
Electrical and Safety Protectionsย  Inbuilt ground fault, surge, and overload protections.ย
Protocols and Communications Standardsย  OCPP 1.6 J.ย
Load & Power Managementย  Open and interoperable demand management, load management, power sharing and power management.ย
Power Sharingย  Software configurable remote switching and power sharing from 0% to 100%.ย
Communication Channelsย  Multiple options such as Wi-Fi, cellular, Bluetooth, and Ethernet.ย
Meteringย  Embedded Class 1.0 electricity meter, other metering options such as ANSI and Measurement Canada certified meters are available*.ย
Real-time power, voltage, and current.ย
Time series data for real-time, daily, weekly, and monthly billing and monitoring.ย
Data Retention and Storageย  90 days historical local storage on a rolling basis to prevent loss of data, peer to peer communication, data is strictly stored in Canada.ย
System Updatesย  Over the air.ย
Charging Cable Typeย  SAEJ1772 plug type 1 with 5/7 meters cable.ย
Displayย  TFT LCD, Size: 36.72 (Height) x 48.96 (Width) mm, Resolution: 320 (Height) x 240 (Width) RGBย
