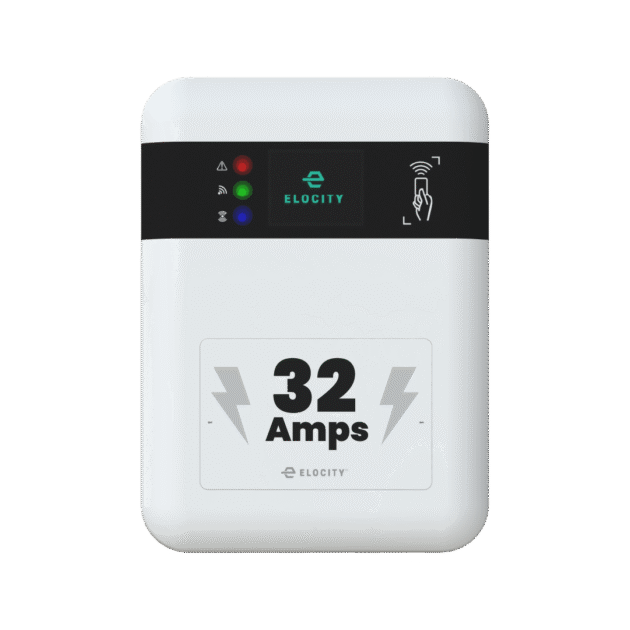

HIEVW – E32 Series

Smart, Reliable, Future-Ready


The Elocity E32 is a versatile Level 2 AC smart charger delivering up to 32A (7.4 kW). Available in wall or pedestal mounts, it offers plug-in or hard-wired options. With OCPP 1.6J compliance, embedded metering, multiple connectivity choices, and intelligent load management, it ensures seamless integration and secure billing. Its IP65-rated, rugged design makes it ideal for indoor or outdoor use, while OTA updates, RFID/mobile access, and power sharing make it a future-proof choice for homes, workplaces, fleets, and public charging.

HIEVW E32 – File Download Here

Category: Product ID: 25126

Description

Description

Fast, reliable, and future-ready EV charging up to 32A (7.4 kW). OCPP-compliant, IP65-rated, and built for homes, workplaces, fleets, and public sites with intelligent load management, secure billing, and multiple connectivity options.

Featureย
Descriptionย
Power, Current, and Voltage Ratingย
Adjustable up to 7.4 KW (Manual selection switch to configure to 8 Amps/16 Amps/24 Amps/32 Amps, 208 V/240 V (Split Phase) AC (+/- 20%).ย
IP Ratingย
IP65 (Outdoor and Indoor rated).ย
Required Service Panelย
Dedicated Dual Pole rated for 125% of maximum loadย
Breakerย
(ex: 40A breaker for 32A output)ย
Electrical and Safety Protectionsย
Inbuilt ground fault, surge, and overload protections.ย
Protocols and Communications Standardsย
OCPP 1.6 J.ย
Load & Power Managementย
Open and interoperable demand management, load management, power sharing and power management.ย
Power Sharingย
Software configurable remote switching and power sharing from 0% to 100%.ย
Communication Channelsย
Multiple options such as Wi-Fi, cellular, Bluetooth, and Ethernet.ย
Meteringย
Embedded Class 1.0 electricity meter, other metering options such as ANSI and Measurement Canada certified meters are available*.ย
Real-time power, voltage, and current.ย
Time series data for real-time, daily, weekly, and monthly billing and monitoring.ย
Data Retention and Storageย
90 days historical local storage on a rolling basis to prevent loss of data, peer to peer communication, data is strictly stored in Canada.ย
System Updatesย
Over the air.ย
Charging Cable Typeย
SAEJ1772 plug type 1 with 5/7 meters cable.ย
Displayย
TFT LCD, Size: 36.72 (Height) x 48.96 (Width) mm, Resolution: 320 (Height) x 240 (Width) RGBย
