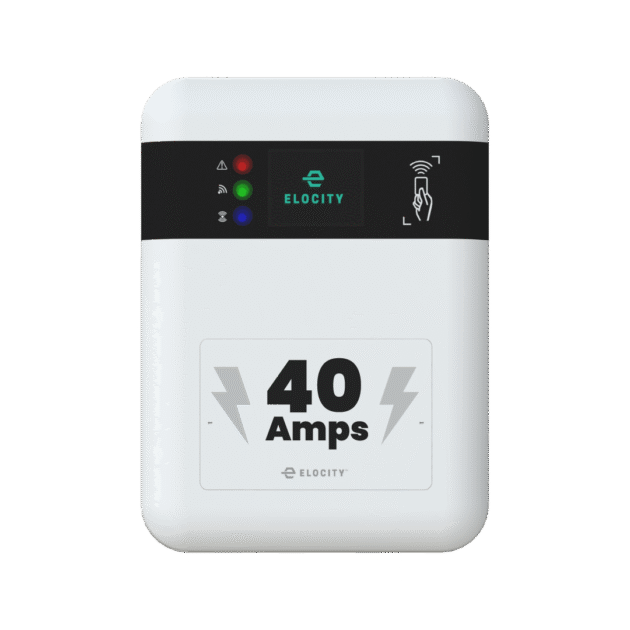

HIEVW – E40 Series

Smart, Reliable, Future-Ready


The Elocity E40 Series is a powerful, Level 2 AC smart EV charger delivering up to 40A (9.6 kW) for efficient residential, commercial, and public charging. Available in both wall-mounted and pedestal configurations, it offers flexible connection options, including NEMA 6-50/14-50 plug-in or hardwired installations. Built with OCPP 1.6J compliance, Class 1.0 embedded metering, and multiple connectivity optionsโ€”Wi-Fi, Bluetooth, Ethernet, and optional 4Gโ€”it ensures interoperability and remote management. With IP65 weather protection, advanced load and power management, over-the-air updates, and integrated billing capabilities, the E40 Series provides a secure, future-ready charging experience. Designed for durability in extreme climates, it features safety mechanisms like ground fault, surge, and overload protection, making it ideal for homes, workplaces, fleets, and public charging sites.

ET200 E40 – File Download Here

Category: Product ID: 25142

Description

Description

E40 Series โ€“ 40A, Level 2 smart EV charger with wall or pedestal mounting options.
OCPP-compliant, IP65-rated, and equipped with advanced load management, embedded metering, and multiple connectivity options.
Built for durability, safety, and seamless integration across residential, commercial, and public charging applications.

Featureย
Descriptionย
Power, Current, and Voltage Ratingย  Adjustable up to 9.6 KW (Manual selection switch to configure to 8 Amps/16 Amps/24 Amps/32 Amps /40 Amps, 208 V/240 V (Split Phase) AC (+/- 20%).ย
IP Ratingย  IP65 (Outdoor and Indoor rated).ย
Required Service Panelย  Dedicated Dual Pole rated for 125% of maximum loadย
Breakerย  (ex: 50A breaker for 40A output)ย
Electrical and Safety Protectionsย  Inbuilt ground fault, surge, and overload protections.ย
Protocols and Communications Standardsย  OCPP 1.6 J.ย
Load & Power Managementย  Open and interoperable demand management, load management, power sharing and power management.ย
Power Sharingย  Software configurable remote switching and power sharing from 0% to 100%.ย
Communication Channelsย  Multiple options such as Wi-Fi, cellular, Bluetooth, and Ethernet.ย
Meteringย  Embedded Class 1.0 electricity meter, other metering options such as ANSI and Measurement Canada certified meters are available*.ย
Real-time power, voltage, and current.ย
Time series data for real-time, daily, weekly, and monthly billing and monitoring.ย
Data Retention and Storageย  90 days historical local storage on a rolling basis to prevent loss of data, peer to peer communication, data is strictly stored in Canada.ย
System Updatesย  Over the air.ย
Charging Cable Typeย  SAEJ1772 plug type 1 with 5/7 meters cable.ย
Displayย  TFT LCD, Size: 36.72 (Height) x 48.96 (Width) mm, Resolution: 320 (Height) x 240 (Width) RGBย
